This equipment is used in the tempering process under vacuum or atmosphere of metal parts such as high-speed steel, mold steel, tool steel, and titanium alloy after quenching. It is efficient with a fast cooling system.
Product
Vacuum Tempering Furnace
Product Use
-
- Tempering of beryllium copper parts
- Tempering of stainless steel parts
Product Features
-
- Consists of a body part, a cooling device part, a vacuum device part, and a control device part.
- Uniform temperature in the furnace, energy-saving structural design.
- Applied a drawer (tray) for easy transport and loading of objects.
- Quickly reaches the vacuum level and maintains the vacuum level.
- Custom-made according to object size, throughput, processing conditions, and temperature.
Standard Specifications
- Operating Temperature
- : 150℃ ~ 750℃
- Electrical Capacity
- : 220/380Vx3Øx60Hz
- Main Body Specifications
- : W1500xH1790xD1000
- Inside of the chamber
- : W300 x H300 x L360
- Control method
- : S.C.R P.I.D ON-OFF Control method

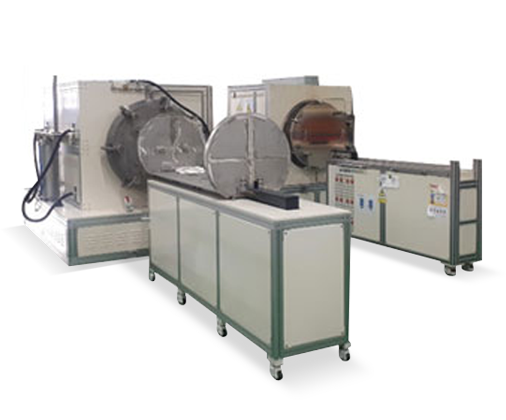

Type of Product

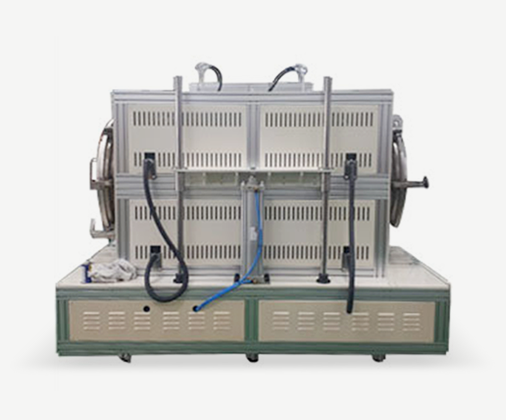

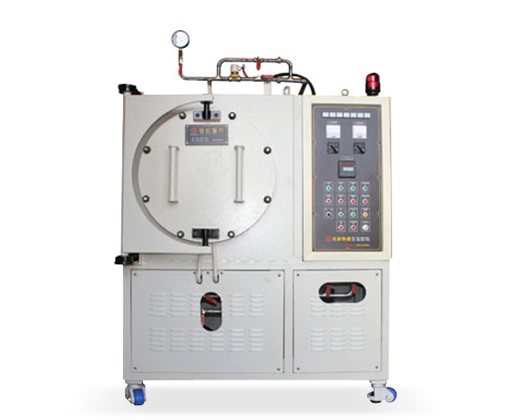

Vacuum Tempering Furnace Front

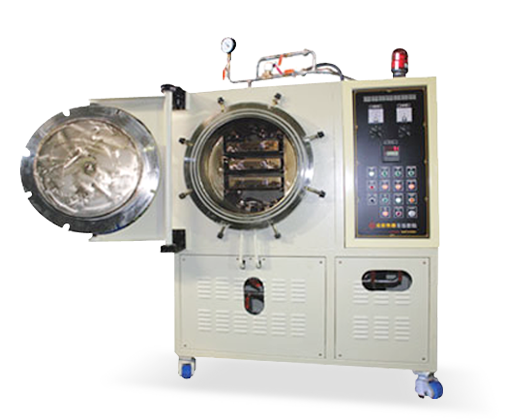

Vacuum Tempering Furnace Chamber Inside
